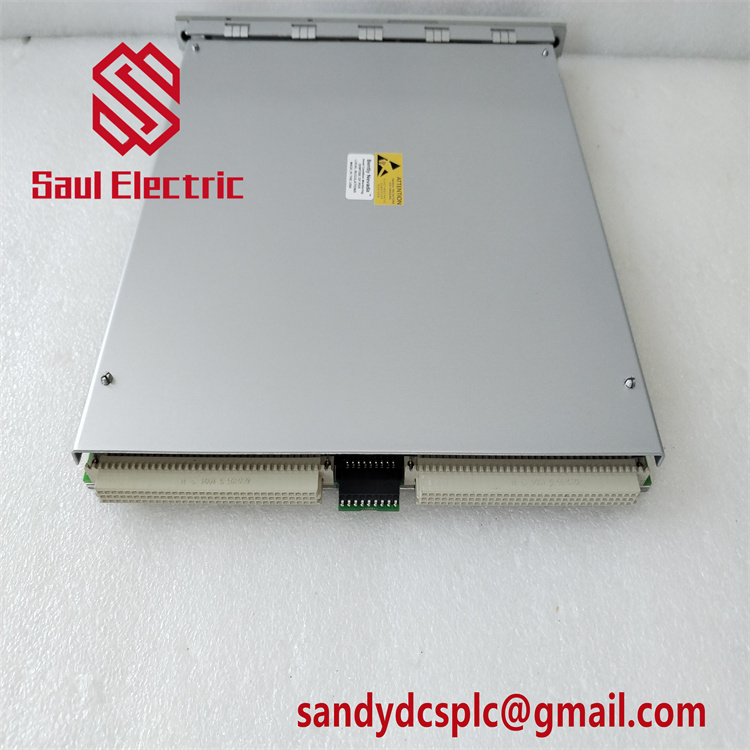

Brand model: BENTLY 3300/16-11-01-03-00-00-01 Product Name: 3300 XL XY/Gap Dual Vibration Monitor Warranty: 1 year Size: 107 mm × 127 mm × 51 mm (4.2″ × 5.0″ × 2.0″) Weight: 0.5 kg (1.1 lbs) Origin: United States Inventory: Spot Delivery time: 3 days after payment
Many products are not yet available—feel free to contact us for more options.
If there is a discrepancy between the product model and the displayed image, the model shall take precedence. For specific product photos, please reach out to us, and we will arrange on-site warehouse shots to confirm details.
With an extensive global warehouse network, there may be occasions where it takes a few hours to provide an accurate response. We appreciate your understanding, and rest assured we’ll address your inquiries as promptly as possible.
Product Overview
The BENTLY 3300/16-11-01-03-00-00-01 is a high-precision dual-channel vibration monitor engineered for real-time health monitoring of rotating machinery. As a core component of the Bently Nevada 3300 XL series, this module integrates advanced signal processing to measure radial vibration (X and Y axes) and shaft position (gap) with ±0.33% accuracy. Designed for critical applications, it delivers analog outputs (4–20 mA, 0–10 V) and digital alarm signals to enable predictive maintenance and prevent catastrophic failures in turbines, compressors, and pumps.
Featuring a compact DIN rail-mountable design, the BENTLY 3300/16-11-01-03-00-00-01 supports user-programmable sensitivity (100 or 200 mV/mil) and frequency response (0.1 Hz to 100 kHz). Its triaxial FEP-insulated inputs minimize EMI/RFI interference, ensuring stable performance in harsh industrial environments with temperatures ranging from -40°C to +85°C. The monitor is fully compatible with Bently Nevada’s 3300 series probes, extension cables, and proximitors, allowing seamless integration into existing condition monitoring systems.
Compliant with API 670 standards, this module plays a pivotal role in maintaining operational safety by detecting early signs of misalignment, bearing wear, or shaft instability. Its 4-character alphanumeric display provides real-time diagnostics, while adjustable alarm thresholds and relay outputs enable rapid response to 异常振动或轴位移.
Technical Specifications
Parameter Name
Parameter Value
Product Model
BENTLY 3300/16-11-01-03-00-00-01
Manufacturer
Bently Nevada
Product Type
Dual-channel vibration/gap monitor
Input Type
Dual vibration (X/Y) + shaft position (gap)
Sensitivity
Programmable: 100 mV/mil or 200 mV/mil
Frequency Response
0.1 Hz to 100 kHz
Input Impedance
10 kΩ
Supply Voltage
24 V DC (±10%)
Output Signals
4–20 mA, 0–10 V analog; digital alarms
Operating Temperature
-40°C to +85°C
Physical Dimensions
107 mm × 127 mm × 51 mm (4.2″ × 5.0″ × 2.0″)
Weight
0.5 kg (1.1 lbs)
Compliance
API 670, CE Mark
Main Features and Advantages
Multi-Parameter Monitoring: The BENTLY 3300/16-11-01-03-00-00-01 simultaneously tracks radial vibration (X/Y axes) and shaft position, providing a comprehensive view of machine health. Its dual-channel design eliminates the need for separate monitors, reducing system complexity and costs.
Precision Signal Conditioning: With ±0.33% full-scale accuracy and programmable frequency response (4–4,000 Hz or 1–600 Hz), the monitor ensures reliable measurements even in high-speed applications. The buffered sensor output and short-circuit protection enhance system robustness.
Flexible Configuration: Users can adjust alarm setpoints (0–100% full scale) and enable time delays (up to 6 seconds) to avoid false triggers. The modular design supports easy integration with Bently Nevada’s 3300 series probes and extension cables, such as the BENTLY 3300/10-02-02-00, for scalable monitoring solutions.
Harsh Environment Resilience: Encased in a rugged IP65-rated enclosure, this monitor withstands extreme temperatures, dust, and moisture. Its FEP-insulated wiring and stainless steel armor (optional) protect against abrasion and corrosion, ensuring longevity in offshore or chemical processing environments.
Application Fields
The BENTLY 3300/16-11-01-03-00-00-01 excels in industries where rotating machinery reliability is critical:
Oil and Gas: Monitors compressors, turbines, and pumps in offshore platforms to detect imbalance or cavitation, reducing unplanned downtime.
Power Generation: Ensures steam turbines and generators operate within safe vibration limits, optimizing energy output and extending component life.
Manufacturing: Integrates with motors and gearboxes in automotive plants to enable predictive maintenance, minimizing production interruptions.
Mining: Guards crushers and conveyor systems against shaft misalignment, preventing costly mechanical failures in mineral processing facilities.
By combining with Bently Nevada’s 3300 XL probes (e.g., BENTLY 330103-00-04-10-02-00) and proximitors (e.g., BENTLY 330180-50-00), this monitor forms a complete API 670-compliant solution for measuring vibration amplitudes, axial displacement, and keyphasor reference signals.
Installation Preparation: Verify compatibility between the BENTLY 3300/16-11-01-03-00-00-01 and system components (probe + extension cable length must match proximitor requirements). Route cables away from high-voltage lines to minimize EMI interference. Use the included mounting brackets to secure the monitor to a DIN rail in a dry, well-ventilated location.
Maintenance Recommendations: Regularly inspect connectors for corrosion or loose fittings. Clean sensor surfaces with a dry cloth to prevent dust accumulation. Periodically recalibrate the monitor using Bently Nevada’s calibration tools to ensure accuracy. For harsh environments, consider upgrading to armored cables like the BENTLY 330130-085-13-CN to enhance durability.
Product Guarantee
The BENTLY 3300/16-11-01-03-00-00-01 comes with a 1-year warranty covering defects in materials and workmanship. Bently Nevada provides 24/7 technical support for installation guidance and troubleshooting. Spare parts, including replacement modules and connectors, are stocked globally for rapid delivery. Rigorous testing ensures compliance with API 670 and CE standards, guaranteeing performance in mission-critical applications.
For any inquiries, contact our dedicated support team for prompt assistance.
