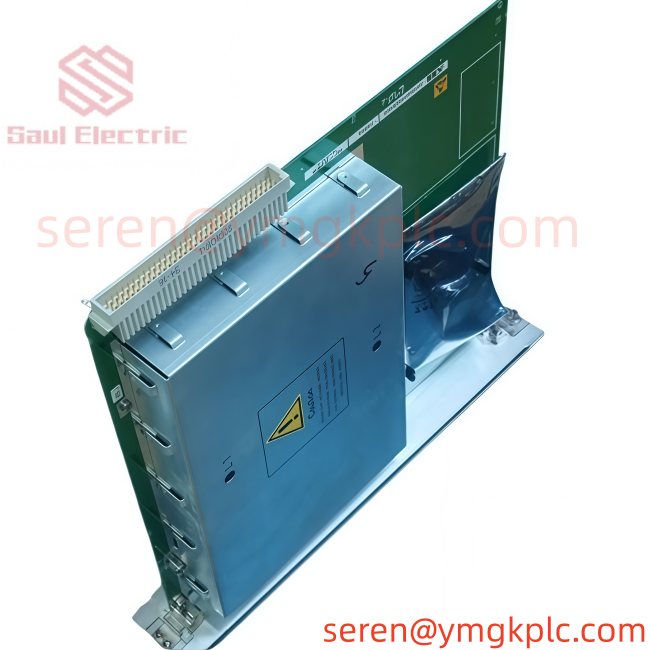

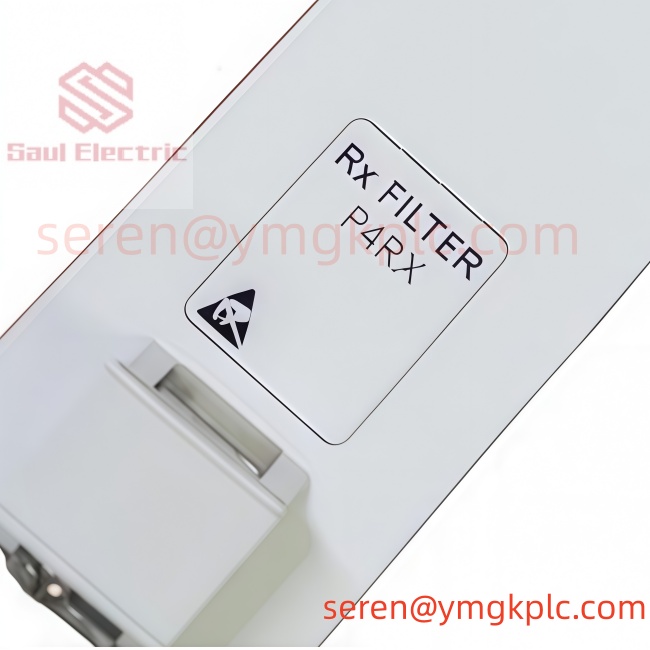

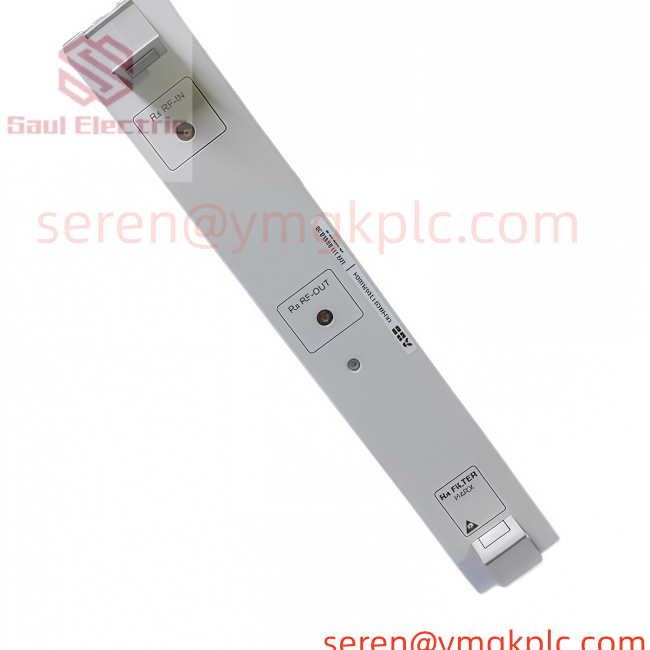

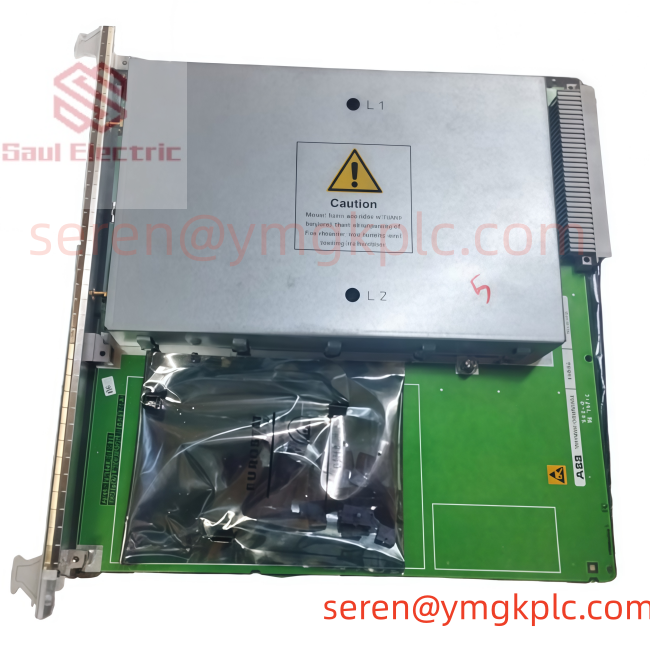

1KHW001356R0004 ABB P4RX | Analog I/O Module, Available Now

Description

Many of our items are not listed online. Feel free to reach out to us for full product offerings.
We operate 16 shared brands channnel across the globe. Given this setup, it may take a few time for us to provide you with precise feedback. Rest assured, we will address your inquiries at the earliest possible time.

3. Key Technical Specifications

4. Product Introduction

The ABB P4RX (order code 1KHW001356R0004) is a multifunction analog I/O module that serves as the primary process signal interface for the Procontrol P4 distributed control system. It fits directly into a standard P4 I/O rack, providing 8 analog input channels for field transmitters (pressure, flow, temperature) and 4 analog output channels for modulating control valves or actuators. The module handles the heavy lifting of signal conditioning, scaling, and linearization, passing clean engineering‑unit values to the P4 CPU over the backplane bus.

Here is the catch: this module is not a universal multipurpose card—it expects a specific firmware revision and rack slot configuration. The 12‑bit resolution and ±0.1% accuracy are sufficient for most process loops, but the real value lies in the diagnostic features. Each input channel includes open‑circuit detection and out‑of‑range alerts, which save you hours of loop‑checking during commissioning. The 500V isolation between field wiring and the backplane protects the CPU from ground loops and common‑mode surges common in older plants.

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The biggest headache with legacy analog I/O in a DCS is not just accuracy drift—it is the slow creep of channel failures that manifest as intermittent “bad PV” alarms. You swap transmitters, you re‑calibrate the loop, but the module’s input conditioning circuit has aged out of spec. The P4RX solves that by providing eight individually configurable inputs, each with its own front‑end buffer and programmable gain. I have used these to replace failing analog cards in pulp and paper mills where one bad channel could shut down a digester pressure control loop. The 4‑20mA outputs drive I/P converters directly, eliminating the need for external signal isolators in most installations.

Part 2 – Numbered List (Application Scenarios)

1. Pulp & Paper – Digester Pressure Control – The P4RX reads 4‑20mA from pressure transmitters on digesters and outputs a 4‑20mA signal to a control valve positioner. The 12‑bit resolution provides fine enough control for the 0–200 psi range, and the out‑of‑range flag catches transmitter zero‑drift.
2. Chemical Processing – Reactor Temperature Cascades – Multiple thermocouple‑to‑transmitter loops feed 4‑20mA signals to the P4RX inputs. The module scales them to engineering units, while the output channels drive cooling water and steam control valves in a cascade scheme.
3. Water Treatment – Filter Backwash Sequencing – The module reads flow and differential pressure sensors on multimedia filters. The 4 analog outputs command variable frequency drives (VFDs) for backwash pumps, with the module’s fast update rate (approx. 50 ms per scan) ensuring smooth ramp profiles.
4. Mining – Thickener Underflow Density Control – The P4RX captures density and level signals from nucleonic and pressure transmitters. The 4‑20mA outputs drive dosing pumps. The 500V isolation proves critical in high‑EMI environments with large motors cycling nearby.

Part 3 – Short Field Story

A chemical plant in Louisiana had a glycol dehydration unit that kept tripping on high temperature—intermittently, always during shift changes. They replaced the thermocouple, the temperature transmitter, and even the control valve positioner. The problem persisted. We sent a field engineer with a handheld calibrator to inject known 4‑20mA signals directly into the P4RX’s input terminals. Channel 3 was reading 1.2 mA low only when the module warmed up after two hours. We swapped in a fresh P4RX (1KHW001356R0004) during the next planned outage. The temperature loop held steady within ±0.5 °F, and the nuisance trips disappeared.

6. Standard Operating Procedure (SOP) for Quality Control

Every ABB P4RX module is put through a strict QC workflow before it leaves our dock:

• Visual & Origin Inspection – We verify the ABB logo, the 1KHW001356R0004 order code, and the date code laser‑etched on the PCB edge. We check for conformal coating consistency, solder joint integrity, and terminal pins—no corrosion or bent contacts.
• Electrical Loop Test (Inputs) – We connect an 8‑channel precision calibrator (Fluke 789) to each input and sweep from 4‑20mA and 0‑10V. We log the raw ADC counts at 0%, 50%, 100%, and confirm linearity within ±0.1%. We also test open‑circuit detection by disconnecting each channel.
• Electrical Loop Test (Outputs) – We command each of the 4 output channels from 0‑20mA and 0‑10V, measuring the actual current/voltage into a calibrated load. We verify the output drives 500 Ω without clipping and that the accuracy stays within spec.
• Bus Communication & Slot Allocation – The module is installed into a Procontrol P4 test rack with a known‑good CPU. We verify backplane handshaking, I/O mapping, and that the CPU reads the correct module type and revision. We also exercise the watchdog timer by simulating a bus fault.
• ESD‑Safe Packaging – The module is placed in an anti‑static bag, surrounded by conductive foam, and sealed in a heavy‑duty corrugated box. All terminal labeling and a pinout reference card are included inside the package.

7. Frequently Asked Questions (FAQ)

Q1: Can I use the P4RX as a direct replacement for a P4RV digital I/O module?

A: No—different slot addressing and backplane protocol. The P4RX is an analog I/O card; the P4RV is digital. You cannot swap them physically without reconfiguring the controller’s I/O map. The rack slot is keyed for the module type, but even if it fits, the CPU will report a type mismatch and fail to initialize.

Q2: What is the update rate for the analog inputs and outputs?

A: The entire module is scanned by the P4 CPU in roughly 50 ms for all 8 inputs and 4 outputs combined. If you need faster response, consider the high‑speed variants. Do not expect sub‑10 ms performance—this is a process I/O card, not a motion control module.

Q3: What if my channel needs a signal range not listed (e.g., 1‑5V)?

A: The module supports 0‑10V and ±10V, but not 1‑5V natively. You have two options: use an external signal converter, or configure the channel for 4‑20mA with a 250 Ω resistor to convert to 1‑5V. We recommend the resistor method—it keeps the isolation intact.

Q4: The module is marked “Rev B”—will it work with a “Rev A” CPU?

A: Typically, yes—ABB maintained backward compatibility for Procontrol P4 revisions up to a point. However, if your CPU firmware predates 2005, you may need to manually enter the module’s type code during configuration. Check the CPU’s module library. If you see a “Module not found” error during boot, you will need to update the CPU’s firmware or use the older module revision.

Q5: Does your 12‑month warranty cover shipping damage and configuration errors?

A: Our warranty covers manufacturing defects—dead channels, output drift, and isolation breakdown. It does not cover damage from incorrect wiring (reversing 24V DC onto the 4‑20mA inputs will fry the front‑end—we see this often), physical impact from shipping (we pack properly, but if the box is crushed, file a claim with the carrier), or configuration mistakes in the CPU software. If the module passes our outgoing QC test, we stand behind it.
