Product Core Background

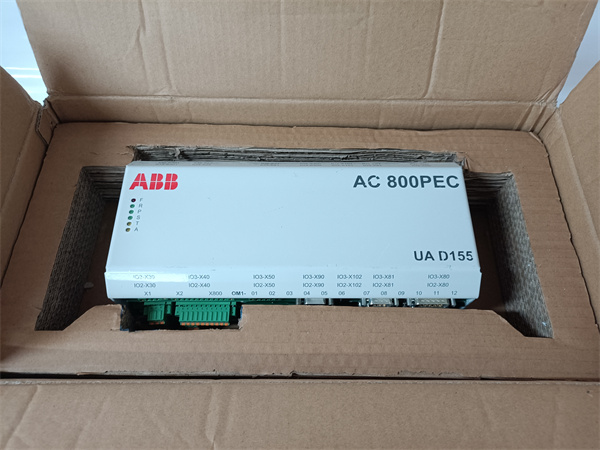

ABB UAD155A0111, material code 3BHE029110R0111, is a high‑speed combined I/O interface unit engineered exclusively for the ABB AC 800PEC power‑electronic controller platform. This compact shielded hardware bridges the main high‑performance CPU and field‑side power‑equipment signals, handling fast analog‑digital conversion and real‑time discrete signal exchange for closed‑loop power‑control algorithms. It is heavily deployed within generator excitation systems, medium‑voltage drives and static var compensator assemblies, where microsecond‑level response latency is mandatory for stable power‑conversion performance. As a legacy critical spare, it supports long‑term operation of existing power‑generation and power‑electronics installations and avoids costly complete‑controller‑hardware retrofits for end‑user sites.

Hardware & Functional Technical Breakdown

• Full part identifiers: UAD155A0111 | 3BHE029110R01111688阿…
• Device category: Combi I/O Box for ABB AC 800PEC programmable electronic controller system
• Core function: Integrates multi‑purpose analog input, analog output, digital input and digital output channels inside one shielded enclosure. It samples generator‑terminal voltage, current, field‑excitation feedback and auxiliary status signals, transmits processed data to AC 800PEC main controller via high‑speed link, and executes output commands to drive peripheral power‑circuit auxiliary hardware. Galvanic isolation separates controller logic domain from noisy power‑cabinet field wiring to suppress EMI interference in high‑voltage‑drive and excitation‑system cabinets.
• Electrical specifications: Powered by 24 VDC control supply (19.2‑30 VDC operating range); multi‑configurable universal I/O channels with galvanic isolation rating up to 1500 V AC; optimized for ultra‑low‑latency real‑time signal acquisition required for power‑electronic closed‑loop control.
• Mechanical construction: Metal shielded housing designed for cabinet‑mount installation; terminal blocks for field‑wiring connection; front‑panel LED status indicators for module power, run and channel diagnostic feedback.
• Environmental rating: Operating temperature range 0 °C ~ +60 °C, indoor cabinet‑only deployment, non‑condensing humidity, built to withstand vibration and electromagnetic noise inside power‑plant excitation and drive cubicles.

Important note: UAD155A0111 is hardware‑locked to AC 800PEC architecture; it cannot interoperate with AC 800M or other ABB controller families. Firmware revision must match main AC 800PEC CPU firmware. Improper channel configuration will result in excitation‑regulation deviation or drive‑control malfunction.



Typical Real‑World Deployment Scenarios

• Power‑plant synchronous‑generator excitation cabinets built on ABB MACH / SYS600 excitation platforms, acting as field‑signal acquisition and output interface for AC 800PEC controllers
• Medium‑voltage AC variable‑frequency drive control cubicles for large‑size industrial motor drives
• Static Var Compensator (SVC) and STATCOM power‑electronics control assemblies for power‑grid reactive‑power compensation
• Spare‑part replacement for existing UAD155A0111 units suffering channel drift, communication link failure or hardware component ageing
• Retrofit projects expanding high‑speed I/O capacity for legacy AC 800PEC power‑control systems
• Critical closed‑loop power‑control loops requiring galvanic signal isolation and fast deterministic signal processing inside heavy‑EMI power‑equipment cabinets



Sourcing & Field‑Commissioning Guidance

1. Confirm exact full part numbers UAD155A0111 and 3BHE029110R0111 before purchase; verify firmware compatibility with paired AC 800PEC main controller. Other ABB I/O modules are not drop‑in functional replacements.
2. Strict ESD anti‑static handling procedures are required; static discharge can damage high‑speed analog‑conversion circuits inside the shielded enclosure.
3. Execute plant lockout‑tagout procedures; de‑energize both 24 VDC control power and high‑voltage power‑circuit equipment before wiring or module replacement work.
4. Verify field‑wiring assignments; separate analog signal cables from high‑power cables to minimize EMI coupling inside the cabinet.
5. Load project‑specific hardware configuration: define channel signal types, scaling parameters and inter‑controller high‑speed communication settings according to plant control‑system documentation.
6. Complete full commissioning validation: inject reference analog signals, verify measured values, check digital‑input status pickup and digital‑output actuation; validate closed‑loop excitation or drive‑regulation performance under static and dynamic operating conditions.



Common Field‑Observed Fault Manifestations

• Incorrect analog measured values: Field‑signal wiring fault, scaling‑configuration error or internal analog‑circuit drift
• Complete channel loss: Cable open‑circuit / short‑circuit failure or onboard channel‑circuit hardware damage
• Intermittent signal fluctuation: Poor shielding‑grounding, heavy EMI interference originating from adjacent power‑semiconductor equipment
• Communication dropout between UAD155A0111 and AC 800PEC CPU: High‑speed link cable damage, loose connector or firmware‑revision mismatch
• Module fault‑LED illuminated: Deviation of 24 VDC control‑supply voltage or internal self‑diagnostic hardware failure
