Core Role for ABB Symphony DCS System

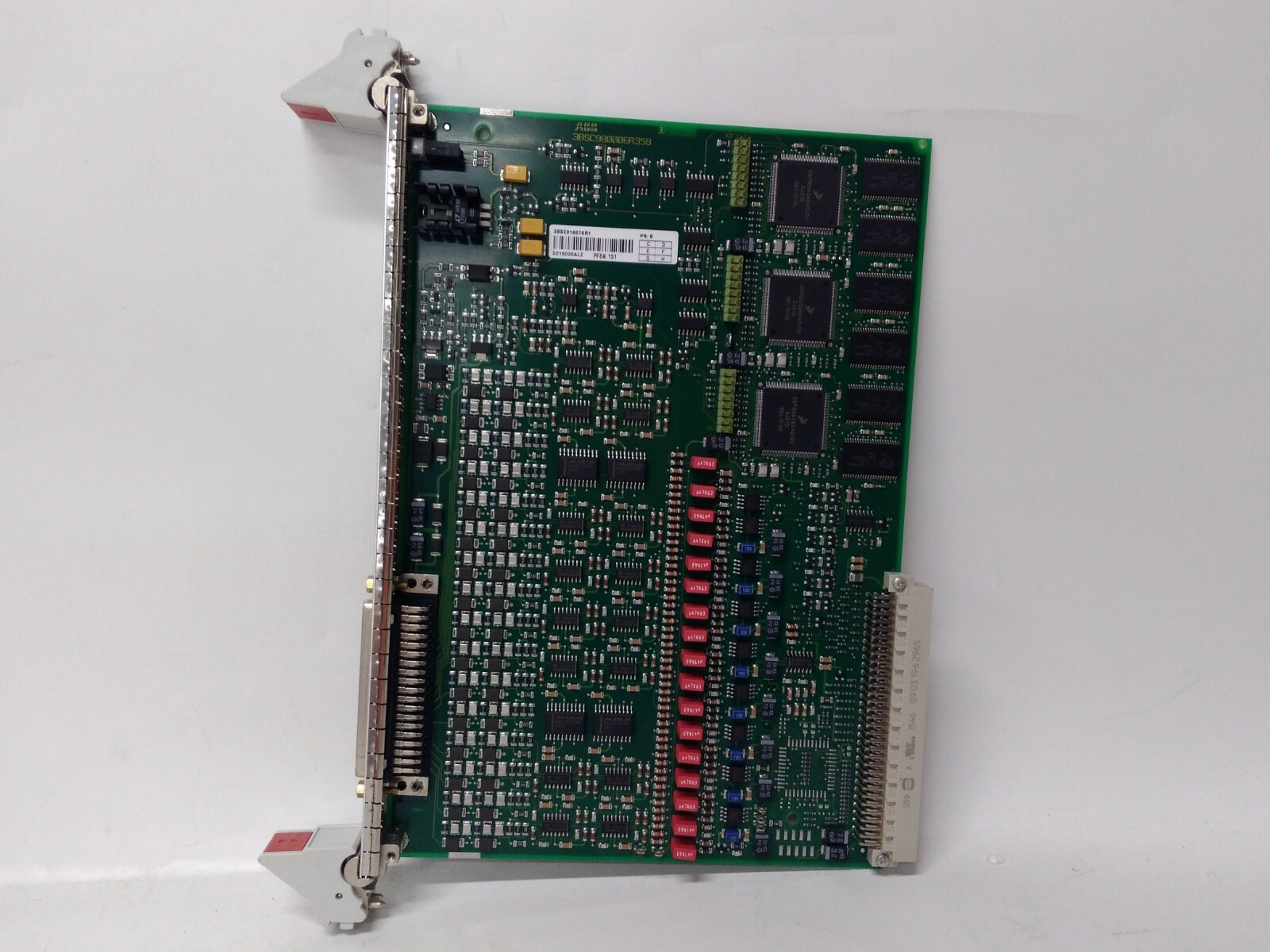

The ABB PFSK151 (3BSE018876R1) is a high‑performance signal processing board for ABB Symphony DCS control racks. It executes fast‑cycle signal acquisition, mathematical calculations and system‑level diagnostic processing for turbine and process‑control applications. This plug‑in board handles high‑speed pulse‑frequency signal measurement, analogue signal conditioning and real‑time data pre‑processing, then exchanges processed data with main controller boards via the internal backplane bus. It is commonly used for turbine speed pickup signals, pulse‑type flow meters and other high‑dynamic‑response measurement points within power‑generation facilities.
Main On‑board Hardware Characteristics
‑ Specialised hardware for frequency‑based pulse‑input signal processing, optimised for magnetic speed‑sensor pickup signals from rotating machinery‑ Multiple isolated input channels for pulse and analogue field signals; galvanic isolation protects DCS rack from field‑side voltage surges‑ On‑board fault‑logging memory stores operation snapshots and alarm history for post‑trip failure analysis‑ Rack‑mount plug‑in card structure, supports hot‑swap maintenance within Symphony rack environment‑ Front‑panel LED status indicators deliver visual diagnosis for module health, channel activity and fault conditions‑ Draws operating power from the DCS rack backplane; EMC‑optimized circuit design for power‑plant cabinet environments
Typical Industrial Application Scenarios
PFSK151 3BSE018876R1 is predominantly applied in power‑plant control cabinets, including gas‑turbine, steam‑turbine generator auxiliary‑control systems and large‑pulse‑meter‑based process‑measurement loops. Most units in service belong to legacy ABB Symphony installations. Common field‑failure causes include long‑term thermal ageing of onboard components, backplane connector wear, cabinet dust contamination and transient voltage‑surge damage. Failure of this board results in loss of pulse‑frequency measurement data and breaks related closed‑loop control workflows.
Critical Sourcing & Replacement Guidance
- Always reference full part identifier PFSK151 / 3BSE018876R1 during procurement; do not substitute with other PFSK‑series boards, channel configuration and firmware compatibility vary among variants.
- Apply anti‑static ESD protection before handling this circuit board.
- After installation, download project‑specific hardware configuration parameters via DCS engineering tool.
- Verify pulse‑input signal readings and check fault logs; complete signal‑simulation test before returning the system to full‑load operation.
Keeping well‑tested spare PFSK151 3BSE018876R1 hardware shortens measurement‑channel downtime for plants running ABB Symphony DCS platforms.
