Overview

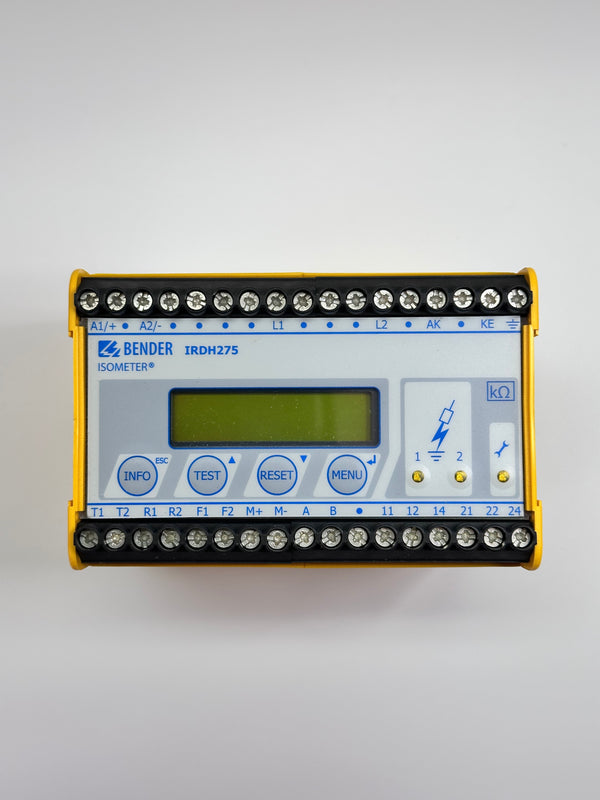

The BENDER IRDH275B‑435W is an ISOMETER® series insulation monitoring device (IMD), engineered for continuous insulation‑resistance supervision on unearthed IT power systems. This unit monitors AC, DC and mixed AC/DC networks, detecting insulation degradation and earth‑fault risks before hazardous leakage faults escalate into equipment damage or safety incidents. Built with the AMPPlus measuring principle, it adapts automatically to high system leakage capacitance, making it well‑suited for modern installations loaded with variable‑frequency drives, rectifiers and switch‑mode power suppliesbender.ro.Commonly DIN‑rail mounted inside electrical control cabinets, the IRDH275B‑435W features backlit LCD display, event history logging and galvanically isolated RS‑485 communication interface. Widely deployed across medical facilities, marine vessels, offshore platforms, chemical plants and critical‑UPS power networks, this safety‑oriented device remains a high‑demand spare part for maintenance and system retrofit projects, protecting personnel and assets against ground‑fault‑related fire and shock hazards.

Core Features & Technical Highlights

• Professional insulation monitoring device for unearthed IT‑systems, exact part number IRDH275B‑435W
• Supports system voltage: AC 0‑793 V, DC 0‑650 V; compatible with pure‑AC, pure‑DC and mixed rectifier‑loaded power circuits
• AMPPlus measurement technology, auto‑adapts to high stray capacitance caused by VFDs and power convertersbender.ro
• Two independently adjustable alarm thresholds ranging from 1 kΩ to 10 MΩ, supporting pre‑warning and main‑alarm classification
• B‑version enhanced functions: real‑time clock history memory for timestamped fault events, galvanically isolated RS‑485 BMS communication, 0/4‑20 mA analog output for remote signal transmissionbender.ro
• Two potential‑free SPDT alarm relay contacts, configurable for normally‑open or normally‑closed operation; local test and reset buttons on front panel
• Standard 35 mm DIN rail installation, complies with IEC 61557‑8 and relevant marine certification standards; built‑in continuous self‑monitoring for device internal faults
• Device self‑diagnosis function automatically triggers alarm when internal hardware failure or wiring anomaly occurs

Typical Application Scenarios

The BENDER IRDH275B‑435W serves safety‑critical unearthed power distribution systems. Major application fields include hospital medical IT power networks, marine shipboard power systems, offshore oil‑gas platforms, petrochemical processing plants, semiconductor manufacturing workshops, UPS and battery‑powered DC installations, as well as photovoltaic DC‑side monitoring projects.For existing operating facilities, ageing insulation monitoring hardware may result in missed ground‑fault alerts, inaccurate resistance readings or complete communication dropout. Missing early‑stage insulation faults can evolve into equipment short‑circuit, fire risks and unexpected process shutdown. Maintenance and system‑integration teams stock this unit as critical spare hardware, supporting fast on‑site replacement and avoiding full‑system reconstruction costs. Its data‑logging capability also helps maintenance engineers trace historical insulation degradation trends for predictive asset management.

Compatibility & Field Maintenance Guidance

During spare‑part procurement and on‑site replacement, strictly confirm the full part identifier IRDH275B‑435W. Other IRDH275 series variants have different hardware functions or communication configurations and are not direct drop‑in equivalents.All wiring, parameter setting and commissioning must strictly follow official BENDER ISOMETER hardware manuals. After DIN‑rail installation and wiring completion, technicians shall execute device self‑test, set two‑stage alarm thresholds according to local project specifications, verify relay output and RS‑485 communication performance. Preventive maintenance cycles should include terminal tightening check, cabinet dust cleaning and functional test of the insulation monitoring loop.Only genuine BENDER original hardware guarantees measurement precision, certification compliance and complete event‑logging and communication functions. Non‑genuine substitutes carry severe risks: inaccurate insulation resistance detection, failure to trigger ground‑fault alarms, violation of site safety‑regulation requirements and potential personal‑safety hazards.

Summary

The BENDER IRDH275B‑435W insulation monitoring device is a core safety component for IT‑type unearthed power systems. It delivers real‑time insulation measurement, fault event recording and remote data transmission, helping end‑users identify hidden earth‑fault risks in advance. Accurate part‑number matching, correct parameter commissioning and regular functional inspection are essential to sustain electrical‑system safety and operational continuity for critical‑load installations.Tags: BENDER IRDH275B‑435W, ISOMETER insulation monitoring device, IT system ground fault monitor, Bender IMD spare parts, unearthed power system safety component
