ABB IGCT Modules for ACS 6000 and SFC Systems (5SHX vs. 5SHY Series)

【Introduction】

In high-power industrial electronics, selecting the correct Integrated Gate-Commutated Thyristor (IGCT) is paramount for system stability and energy efficiency. ABB’s 5SHX and 5SHY series represent the pinnacle of Medium Voltage (MV) switching technology. Whether you are maintaining an ACS 6000 drive for a rolling mill or a Static Frequency Converter (SFC) for grid synchronization, understanding the technical nuances between different part numbers is essential.

This guide provides a side-by-side technical comparison of the most in-demand ABB IGCT modules to help procurement engineers and technical middlemen make informed decisions.

【Technical Comparison Table】

IGCT Part Number	Integrated Gate Unit	Voltage/Current Class	Primary System Compatibility	Key Application
5SHX1445H0001	3BHL000391P0101	4.5kV / 1.4kA	ACS 1000 / ACS 5000	Water-cooled MV Drives
5SHX1960L0006	3BHB016120R0002	6.0kV / 1.9kA	ACS 6000 / SFC	High-Voltage Switching
5SHX2645L0002	3BHB012961R0001	4.5kV / 2.6kA	ACS 6000 / SFC	Power Conversion
5SHX2645L0004	3BHL000389P0104	4.5kV / 2.6kA	ACS 6000 / MEGADRIVE-LCI	Heavy Duty Motor Control
5SHY3545L0009	3BHB020720R0002	4.5kV / 3.5kA	ACS 6000 / UNITROL 6000	Excitation & Power Converters
5SHY3545L0010	3BHB013088R0001	4.5kV / 3.5kA	ACS 6000 / SFC	Grid Synchronization
5SHY3545L0014	3BHE023784R0001	4.5kV / 3.5kA	ACS 6000 / SFC	Marine & Mining Propulsion
5SHY4045L0003	3BHE019719R0101	4.5kV / 4.0kA	ACS 6000 / SFC	Megawatt-Level Switching

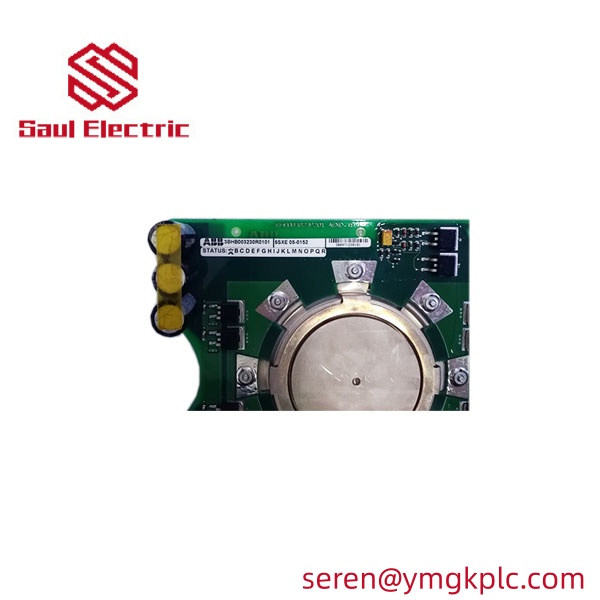

ABB 5SHX1445H0001 IGCT Module with 3BHL000391P0101 Gate Unit Label

ABB 5SHY3545L0010 IGCT Power Module with 3BHB013088R0001 Gate Unit label

ABB 5SHX1960L0006 IGCT Module with 3BHB016120R0002 Gate Unit label

【Key Technical Insights】

1. The Difference Between 5SHX and 5SHY

While both series utilize the integrated gate unit architecture, the 5SHY series typically represents higher power density and current ratings (up to 4.0kA), often found in the most demanding phase modules of the ACS 6000. The 5SHX series is frequently utilized for specialized voltage requirements or specific drive architectures like the ACS 1000.

2. Gate Unit Integration

One of the most critical aspects of these modules is the pre-integrated Gate Unit (e.g., 3BHB or 3BHE series). This integration ensures:

Low Inductance: Critical for fast switching speeds.
Fiber Optic Control: Total immunity to EMI (Electromagnetic Interference).
Precision Timing: Synchronized switching across multiple modules in a stack.

3. Application Focus: ACS 6000 & SFC

Most modules in this comparison (especially the 3.5kA and 4.0kA versions) are the “heart” of the ACS 6000 drive used in metals, mining, and marine propulsion. They also play a vital role in Static Frequency Converters (SFC) used to connect different power grids or provide variable frequency power to large synchronous machines.

【Maintenance & Procurement Advice】

(1) Verify the Version: ABB IGCTs often have specific revision numbers (e.g., R0001 vs. R0002). Always check your drive’s nameplate or the faulty module’s label to ensure 100% compatibility.

(2) Optical Fiber Integrity: When replacing these modules, ensure the fiber optic cables are clean and free of kinks, as signal integrity is vital for the IGCT’s performance.

(3) Cooling System Check: Since these are high-power water-cooled components, ensure the cooling manifold and O-rings are in perfect condition during installation to prevent leakage.

ABB 5SHX1445H0001 IGCT Module with 3BHL000391P0101 Gate Unit front view

ABB 5SHX2645L0004 IGCT Module with 3BHL000389P0104 Gate Unit front

【Global Supply Solutions】

Managing the supply chain for rare and high-value semiconductors requires a reliable B2B partner. We maintain a strategic inventory of original ABB IGCT modules to support global maintenance projects.

Why choose us for your MV Drive spares?

Authenticity: 100% original ABB components with verifiable serial numbers.
In-Stock Priority: Rapid dispatch for emergency breakdowns.
Expert Logistics: Proven experience shipping sensitive power electronics to Russia, Kazakhstan, UAE, and Southeast Asia.
