ABB UNITROL 1000vs1010vs1020 | Excitation System Comparison Guide

【Introduction】

The ABB UNITROL 1000, UNITROL 1010, and UNITROL 1020 are part of the same excitation system series, widely used for voltage regulation and generator control in industrial and power applications.

These models are designed for different performance levels and application requirements, ranging from basic voltage control to advanced system regulation.

Understanding the differences between these three models is essential for selecting the right excitation system for your project.

This guide provides a clear comparison of UNITROL 1000 vs 1010 vs 1020 to help you make the right decision.

【UNITROL 1000 vs 1010 vs 1020 Quick Comparison】

Parameter	UNITROL 1000	UNITROL 1010	UNITROL 1020
Series	UNITROL 1000 Series	UNITROL 1000 Series	UNITROL 1000 Series
Product Type	Excitation System	Excitation System	Excitation System
Performance Level	Entry-level	Mid-range	Advanced
Control Capability	Basic AVR	Enhanced AVR	High-performance AVR
Response Speed	Standard	Faster	Fastest
System Complexity	Low	Medium	High
Application Size	Small generators	Small to medium	Medium-scale systems
Integration	Standard	Improved	Advanced
Flexibility	Basic	Flexible	Highly flexible
Typical Use	Simple applications	Industrial systems	Complex power systems

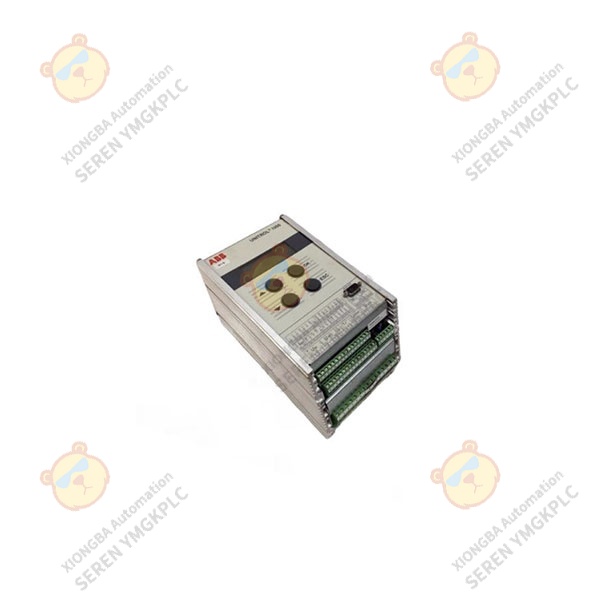

: ABB UNITROL 1000 excitation system AVR controller front

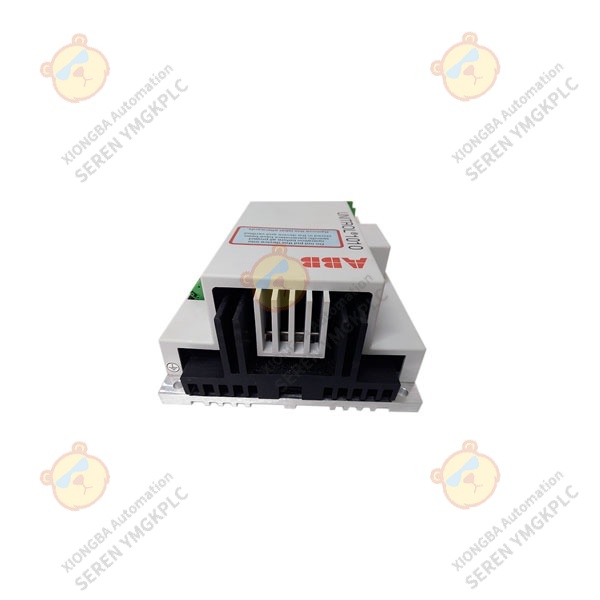

: ABB UNITROL 1010 excitation system AVR controller sideview

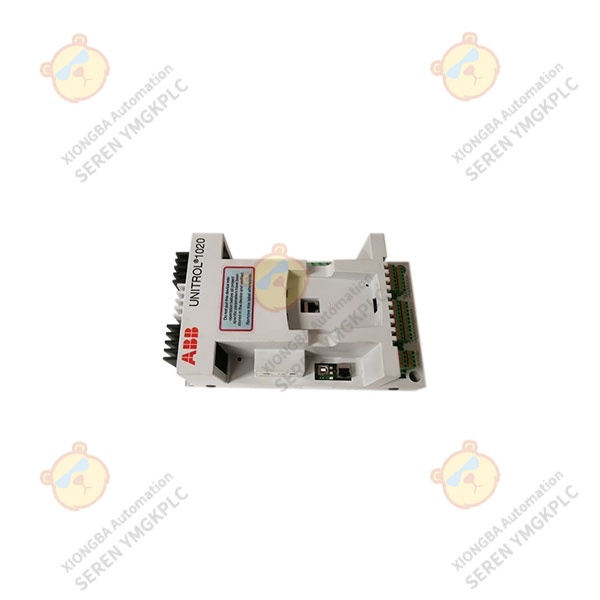

: ABB UNITROL 1020 excitation system AVR controller front

【Key Differences Explained】

(1) Performance Level

UNITROL 1000 is designed for basic excitation control and simple applications.

UNITROL 1010 offers improved performance with better control accuracy and flexibility.

UNITROL 1020 is the most advanced model, providing high-performance control for complex and demanding systems.

(2) Control Capability

All three models include automatic voltage regulation (AVR), but their capabilities differ:

(1) UNITROL 1000 → Basic voltage control
(2) UNITROL 1010 → Enhanced control and stability
(3) UNITROL 1020 → Advanced control with high precision

(3) Application Scope

(1) UNITROL 1000 → small generators and simple systems
(2) UNITROL 1010 → industrial applications and medium systems
(3) UNITROL 1020 → complex systems requiring high reliability

(4) System Integration

UNITROL 1020 provides the most advanced communication and integration capability, making it ideal for modern automation systems and DCS environments.

UNITROL 1010 offers balanced integration capability, while UNITROL 1000 focuses on basic system requirements.

【Applications】

These models are widely used in:

(1) Power generation (thermal, hydro, renewable)
(2) Industrial generator control systems
(3) Oil & gas and petrochemical industries
(4) Marine and offshore applications
(5) Utility and energy infrastructure

【Which One Should You Choose?】

Choose UNITROL 1000 if:

(1) You need a cost-effective solution
(2) Your system is simple and stable
(3) Basic voltage regulation is sufficient

Choose UNITROL 1010 if:

(1) You need better control performance
(2) Your system requires flexibility
(3) You are working with industrial applications

Choose UNITROL 1020 if:

(1) Your system is complex or high-demand
(2) You require high precision and fast response
(3) You need advanced integration with automation systems

👉 Tip: Always select based on system complexity and performance requirements

【FAQ】

Q1: What is the main difference between UNITROL 1000, 1010, and 1020?
A: The main difference lies in performance level, control capability, and system complexity.

Q2: Which model is the most advanced?
A: UNITROL 1020 is the most advanced model in this series.

Q3: Are these models interchangeable?
A: They are not directly interchangeable and should be selected based on system requirements.

Q4: Which model is best for industrial use?
A: UNITROL 1010 and 1020 are more suitable for industrial applications.

Q5: Which model is easiest to install?
A: UNITROL 1000 is the simplest and easiest to deploy.
