Honeywell Experion PKS C300 System Modules Overview | Power, Redundancy & Processor

【Intro】

The Honeywell Experion PKS C300 system is a powerful distributed control system (DCS) widely used in industrial automation.

To ensure reliable and continuous operation, the system relies on key modules including power supply, redundancy, and processor units.

This guide introduces three essential modules — TC-PPD011, TK-PRR021, and TK-PRS021 — and explains how they work together to build a stable and high-performance control system.

【Core Modules Overview】

Module	Model	Function
Power Supply Module	TC-PPD011	Provides stable system power
Redundancy Module	TK-PRR021	Ensures system failover and backup
Processor Module	TK-PRS021	Executes control logic

【Power Supply Module – TC-PPD011】

The TC-PPD011 module is responsible for delivering stable and continuous power to the C300 system.

It supports redundant power configurations, ensuring that the system remains operational even in case of power failure.

This module is essential for maintaining uptime in critical industrial processes.

: Honeywell TC-PPD011 power supply module front

【Redundancy Module – TK-PRR021】

The TK-PRR021 redundancy module plays a key role in system reliability.

It enables automatic failover between primary and backup controllers, ensuring uninterrupted operation.

This is especially important in industries where downtime can lead to significant losses.

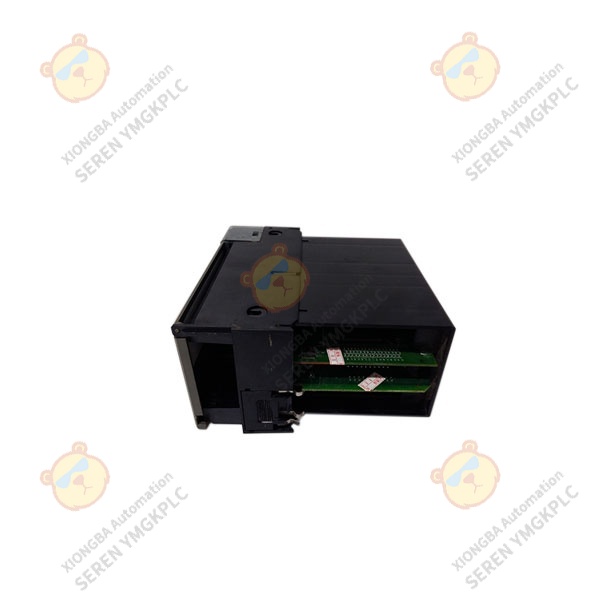

: Honeywell TK-PRR021 redundancy module sideview

【Processor Module – TK-PRS021】

The TK-PRS021 processor module acts as the core of the system.

It executes control logic, processes real-time data, and manages communication between modules.

With high processing performance, it ensures precise and efficient system control.

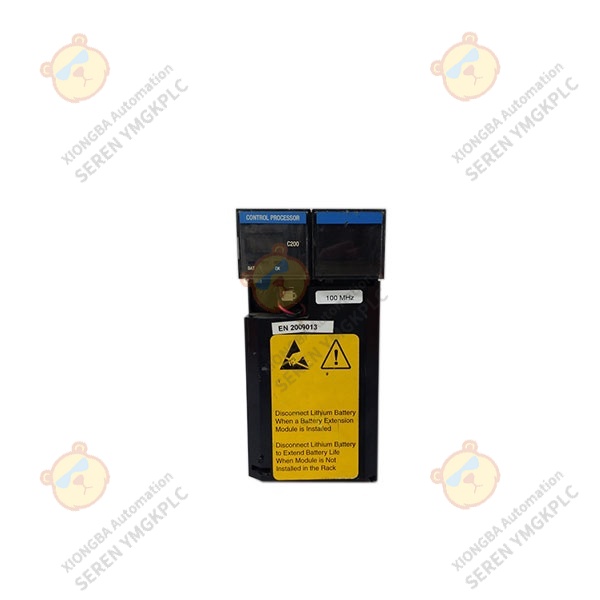

: Honeywell TK-PRS021 processor module label

【How These Modules Work Together】

(1) The TC-PPD011 provides stable power to all system components

(2) The TK-PRS021 processes control logic and manages operations

(3) The TK-PRR021 ensures redundancy by enabling seamless failover

(4) Together, they form a reliable and fault-tolerant control system

【System Advantages】

Advantage	Description
High Reliability	Redundant architecture ensures continuous operation
System Stability	Stable power and processing performance
Fault Tolerance	Automatic failover minimizes downtime
Industrial Grade	Suitable for harsh environments

【Applications】

(1) Oil & gas production and refining
(2) Power generation plants
(3) Chemical and petrochemical industries
(4) Industrial automation systems
(5) Continuous process control environments
